Slow Dynamics and High Variability in Clustered Spiking Networks

Reproduction of Litwin-Kumar & Doiron (2012)

Brian2PythonNumPySciPyMatplotlib

What this is about

Cortical neurons are noisy. They fire irregularly from trial to trial, and their firing rates drift on slow timescales. Standard balanced E/I network models can explain the fast irregularity, but they miss the slow stuff. Litwin-Kumar and Doiron (2012) showed that a simple structural change — clustering the excitatory connections — is enough to get both.

This project is a from-scratch reproduction of their paper. I built a network of 5,000 leaky integrate-and-fire neurons (4,000 excitatory, 1,000 inhibitory) in Brian2, organized the excitatory neurons into 50 clusters with stronger within-cluster connections, and ran the analyses to verify the key claims.

Spike raster plots from the clustered spiking network, showing coordinated bursts of activity within neuron clusters

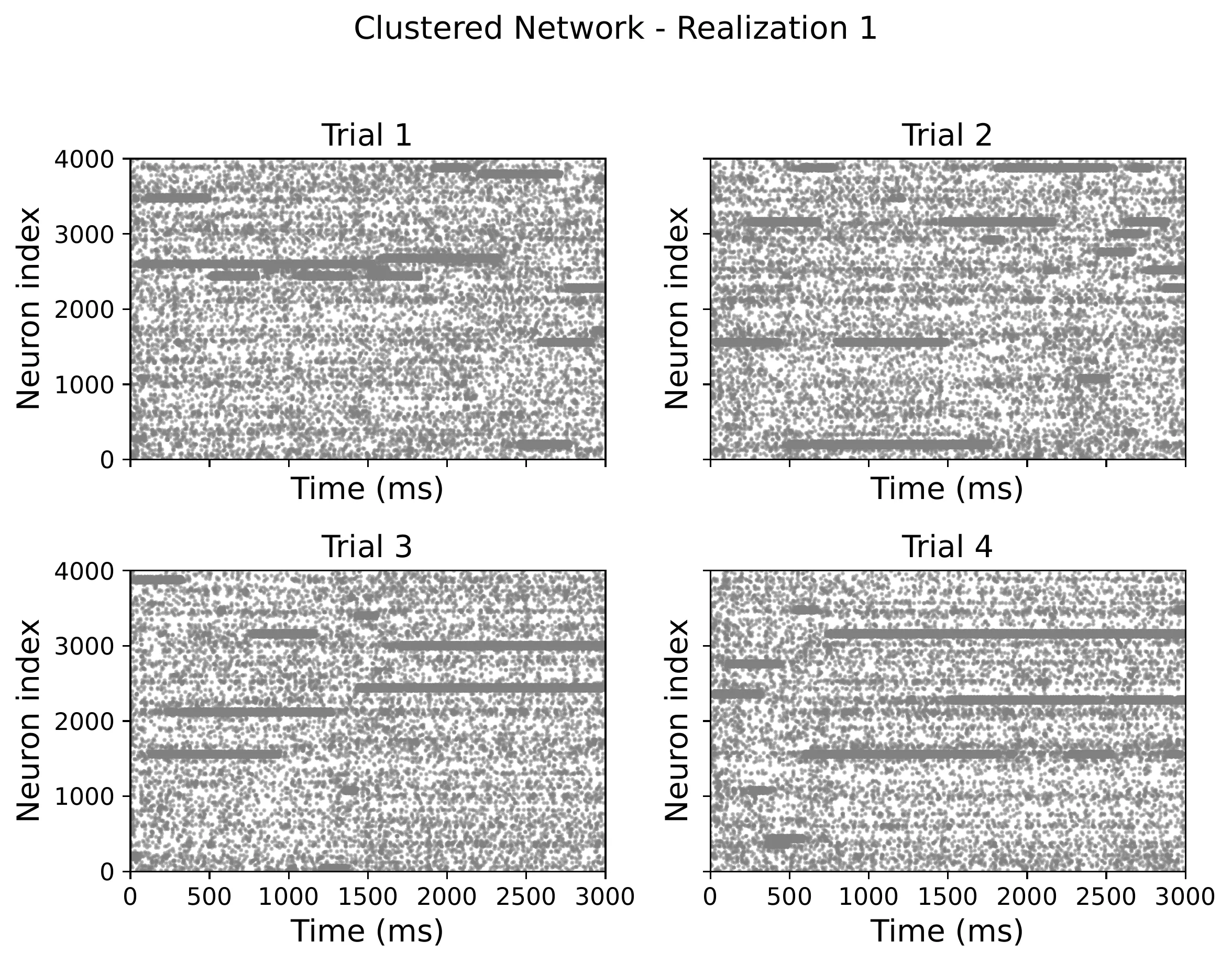

Spike raster plots from the clustered network. Each dot is a spike; rows are neurons grouped by cluster. You can see clusters flipping between high and low activity states.

The interesting part

When you strengthen the connections within clusters, the network develops metastable states — clusters spontaneously flip between high and low activity. This looks striking in raster plots: you can see coordinated bursts rippling through groups of neurons.

These metastable transitions produce exactly the statistics you see in real cortical data: Fano factors above 1 that grow with counting window (slow rate fluctuations), weak average correlations but with a heavy positive tail for same-cluster pairs, and — maybe the neatest result — variability that gets quenched when you drive the network with a stimulus, just like in cortex.

There's a sharp transition too. Below a critical clustering ratio, the network behaves like a uniform balanced network. Above it, the metastable dynamics kick in. The paper nails down where that threshold sits.

How it's built

The code is a modular Python package. Simulation runs through Brian2, but the analysis layer is pure NumPy/SciPy — no simulator dependency, which makes it easy to work with the data separately. There's a clean pipeline from parameters to simulation to spike data to statistics to figures.

I tracked five metrics: firing rate distributions, Fano factors, pairwise correlations, auto/cross-covariance timescales, and stimulus response profiles. Everything runs across multiple trials and random seeds for statistical robustness.

Reference

Litwin-Kumar, A., & Doiron, B. (2012). Slow dynamics and high variability in balanced cortical networks with clustered connections. Nature Neuroscience, 15(11), 1498–1505.
